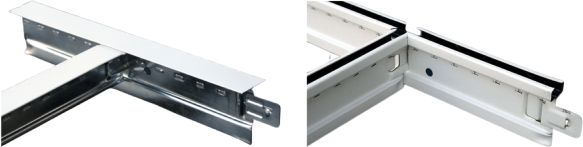

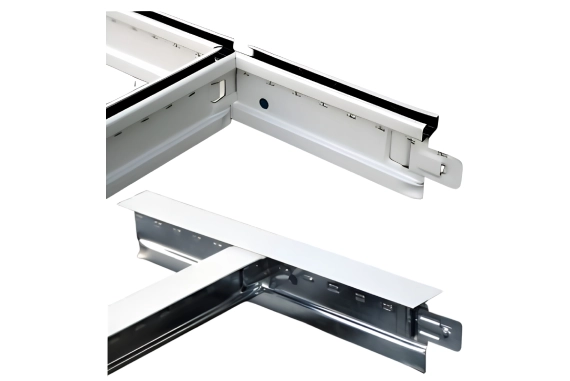

T - GRID SYSTEM
- Tee Grid System is made from hot dip galvanized & pre-painted steel and this is the most convenient ceiling system in terms of installation, repair & maintenance.
- Steel material is processed by pre-painted hot dip galvanized.
- Zinc Mass Coating is 120/180 gm/m2 to avoid rusting of steel.
- The material is processed with 20-micron polyester paint on steel.
- This is the most convenient ceiling system in terms of installation and repair.
- Load bearing capacity when the span is 1.2 meter, supported with hanger wire from roof for Type A is 12.05 kg/m2 and for Type B is 8.45 kg/m2.
- Eco-Friendly: Promotes sustainable energy solutions.
|
Type A (Standard)
24mm |
Type B (Regular)
24mm & 24 Select |
Slim Line
15mm & 15mm Select |
Silhouette
|
|
|---|---|---|---|---|
|
Main Runner
|
38x24x3600
|
33x24x3600
|
33x15x3600
|
33x15x3600
|
|
Cross Tee
|
28x24x1200
|
26x24x1200
|
26x15x1200
|
33x15x1200
|
|
Cross Tee
|
28x24x600
|
26x24x600
|
26x15x600
|
33x15x600
|
|
Wall Angle 0.4mm
|
24x24x3050
|
24x24x3050
|
15x15x3050
|
15x15x3050
|
METAL TILES

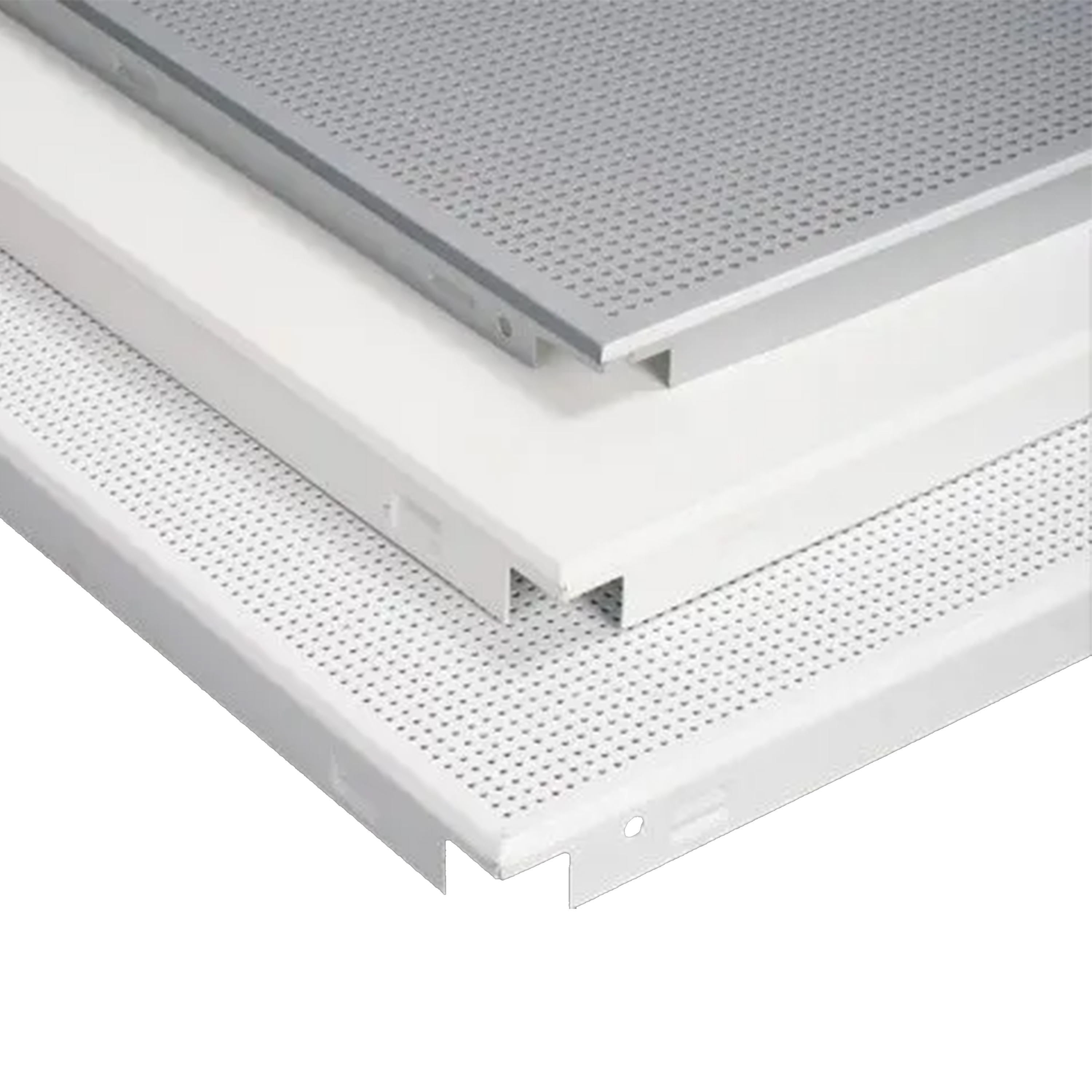

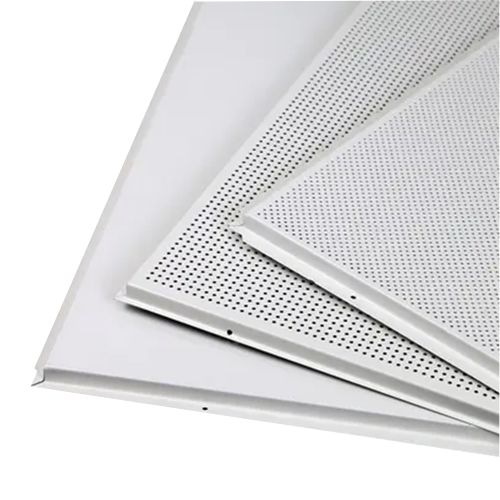

Lay-In Plain / Perforated Tiles
Lay-in false ceiling system with steel/aluminium tile 595 mm X 595 mm is manufactured out of 0.50 mm thick polyester coil coated galvanized steel 80/120/180 gsm zinc coating (As per IS:277).
Coil coated steel tile (PPGI) has 20-micron polyester coated finish and back coat of 5-micron alkyd primer.
Aluminium powder coated 0.7mm with 60 microns polyester paint in AA5050, AA3105 or AA1050 aluminium alloy.
These tiles can have square or beveled edges. All tiles are available in 2.5mm, 2.3mm and 1.8mm perforation patterns.
Clip In Plain / Perforated Tile
Clip-in false ceiling system with steel tile (600 mm x 600 mm) is manufactured out of 0.50 mm coated galvanized steel (80/120/180 gsm) total zinc coating on both sides.
These tiles can have square or beveled edges.
It is available in matt finish on the exposed side and a primer coating on the back.
Optionally, they can be coil coated / powder coated in different standard color shades.
The coil coated tile has 20-micron polyester coated finish and back coat of 5-micron alkyd primer.
The rigid suspension system consists of rows of 0.5 mm galvanized steel clip-in profiles installed at 600 mm c/c spacing to support the tiles.
All tiles are available in 2.5mm, 2.3mm and 1.8mm perforation patterns.
| Technical Characteristics / Properties of Metal Tile | |||
|---|---|---|---|
| PROPERTIES | LAY-IN TILES | CLIP-IN TILES | |
| 1. | METAL | STEEL / ALUMINIUM | STEEL / ALUMINIUM |
| 2. | SURFACE | PLAIN / PERFORATED | PLAIN / PERFORATED |
| 3. | COATING | PPGI COIL / POWDER-COATED | PPGI COIL / POWDER-COATED |
| 4. | SIZE | 595 x 595 mm | 600 x 600 mm |
| 5. | THICKNESS | STEEL (.5) & ALUMINIUM (.7) | STEEL (.5) & ALUMINIUM (.7) |
| 6. | COLOURS | ON - DEMAND | ON - DEMAND |
| 7. | ZINC-COATING | STEEL (80/120/180 GSM) | STEEL (80/120/180 GSM) |
| 8. | GRID SYSTEM | EXPOSED - GRID - SYSTEM | CONCEALED - GRID - SYSTEM |
BENEFITS
- ? Fast & time saving installations
- ? Demountable systems allow for quick access above ceiling for repair & maintenance
- ? Modification can be easily done after installation
- ? Global compatibility and availability
- ? Cost control
- ? Cleaner installation compared to conventional ceilings
Lay-In Plain / Perforated Tiles
Lay-in false ceiling system with steel/aluminium tile 595 mm X 595 mm is manufactured out of 0.50 mm thick polyester coil coated galvanized steel 80/120/180 gsm zinc coating (As per IS:277).
Coil coated steel tile (PPGI) has 20-micron polyester coated finish and back coat of 5-micron alkyd primer.
Aluminium powder coated 0.7mm with 60 microns polyester paint in AA5050, AA3105 or AA1050 aluminium alloy.
These tiles can have square or beveled edges. All tiles are available in 2.5mm, 2.3mm and 1.8mm perforation patterns.
Clip In Plain / Perforated Tile
The Baffle Ceiling is a curtain-type decoration ceiling. Strong stereoscopic effect, the line of space is clean, new, and unique with different colours. The style of decoration is clear, elegant, modern, and harmonious. Convenient to install and quick to remove.
Exhaust heat
Convenient for air flowage. It creates a comfortable interior space.
Beautiful Style
Elegant line makes the light even and gentle distribution.

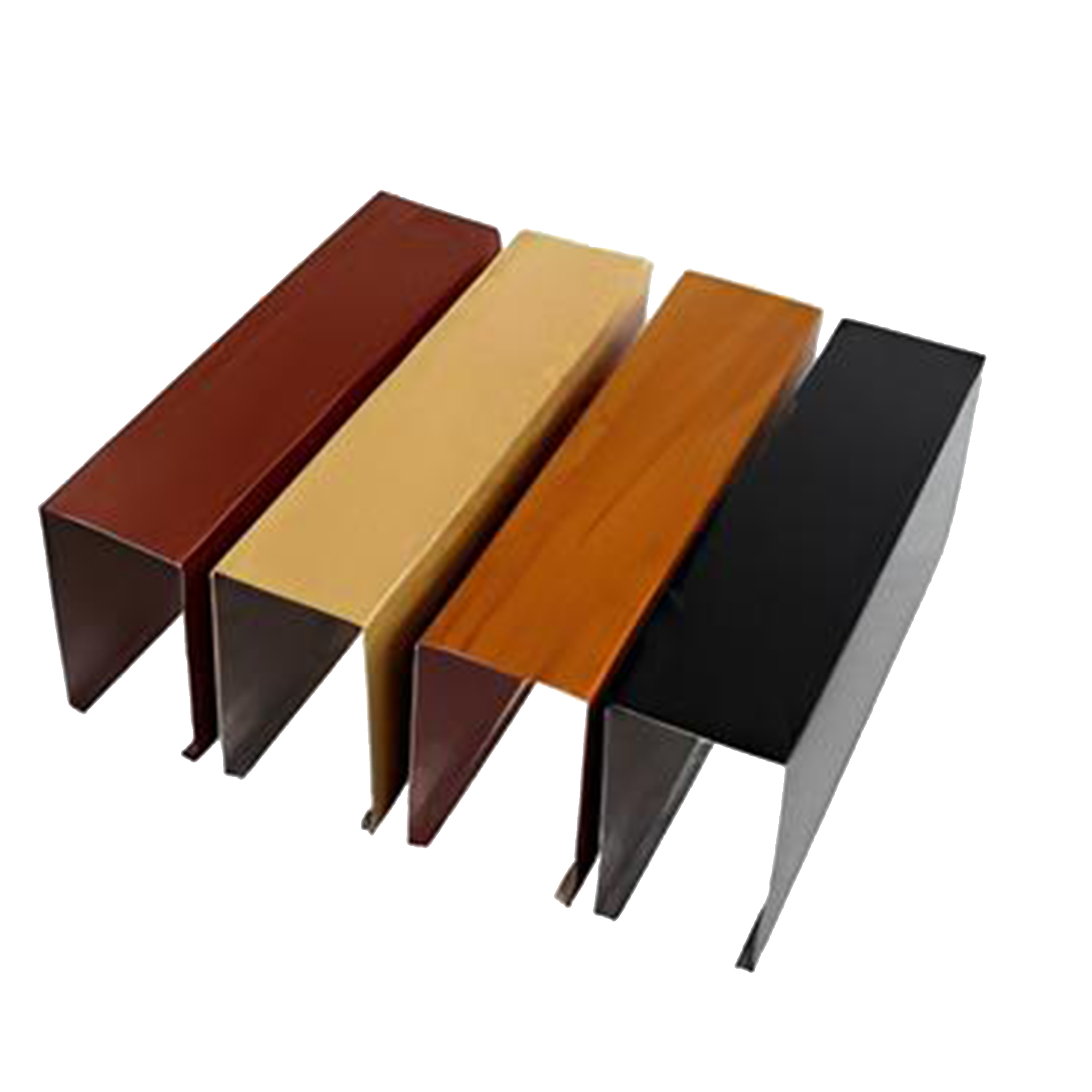

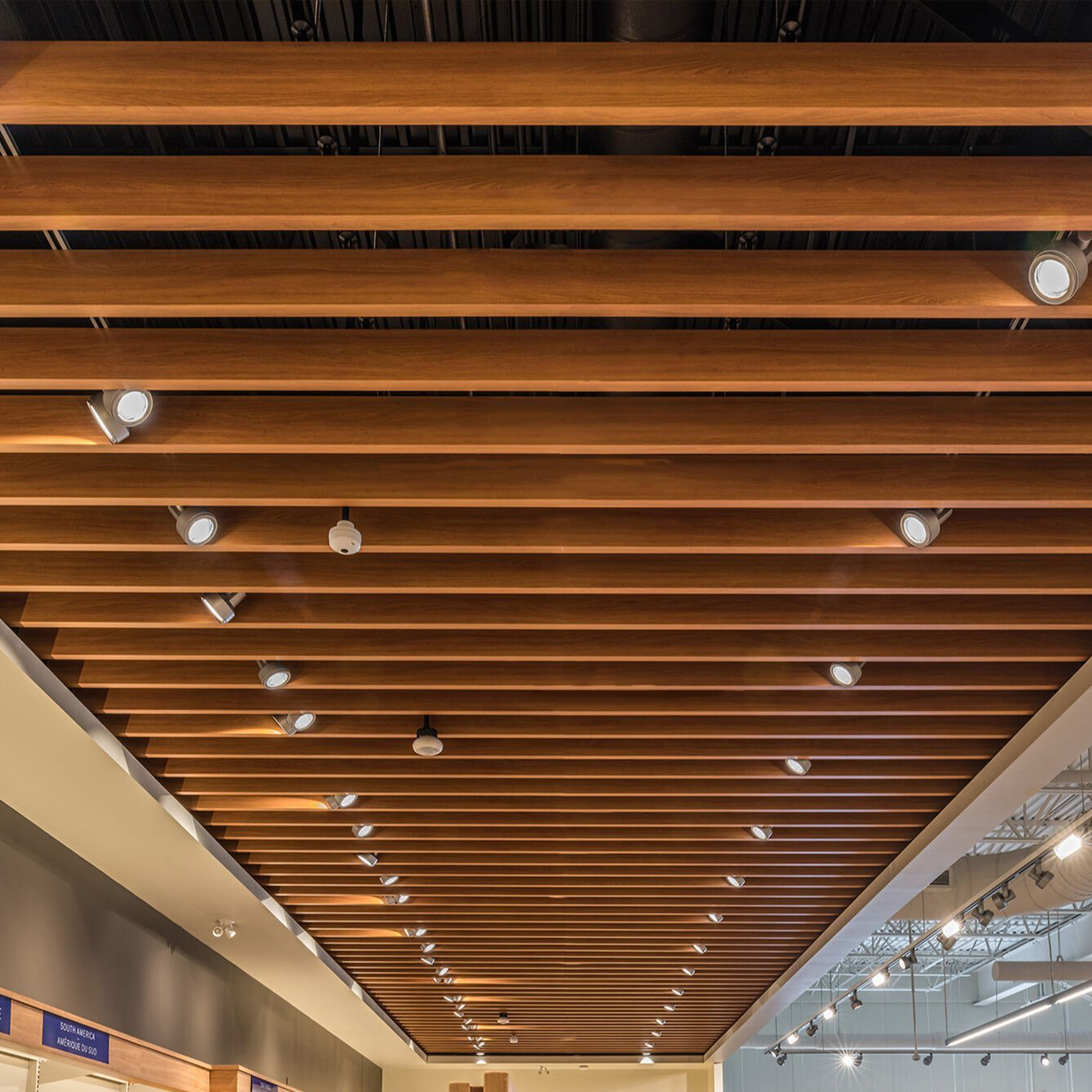

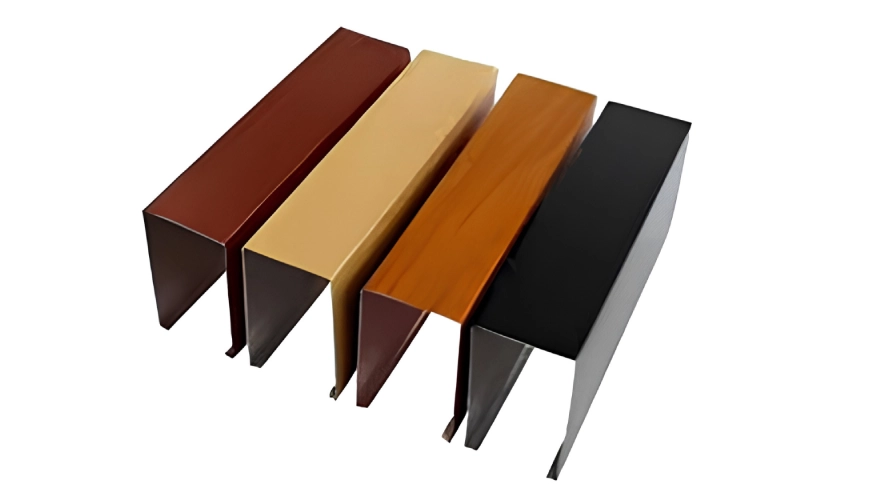

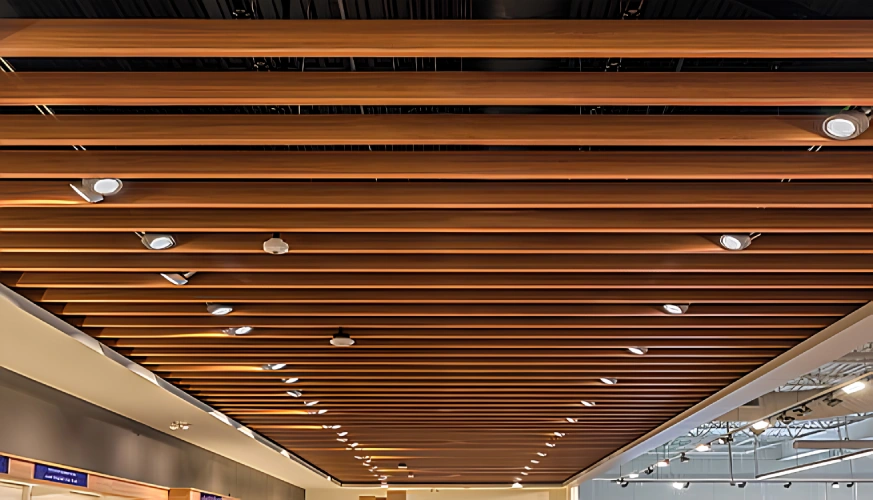

BAFFLE CEILING
The Baffle Ceiling is a curtain-type decoration ceiling. Strong stereoscopic effect, the line of space is clean, new, and unique with different colours. The style of decoration is clear, elegant, modern, and harmonious.
Convenient to install and quick to remove.
Exhaust heat?Convenient for air flowage. It creates a comfortable interior space.
Beautiful Style?Elegant line makes the light even and gentle distribution
Features of Baffle Ceiling:
- Shaped: Square / U-Shaped
- Material: Grade aluminium alloy / GP
- Installation System: Includes button-type carrier system and hook-on type carrier system
- Coating Types: Pre-coated and powder-coated
- Dimensions: Width 50-75mm, Height 75-150mm
All tiles are available in 2.5mm, 2.3mm, and 1.8mm perforation patterns.
